Highlight:
ID Card Printer 300 DPI
, Secure ID Card Printer
Print Mode: |
300 Dpi Reverse-transfer Printing Technology. (Optional 600 Dpi Model Available) |
Card Security Printing: |
Holographic Laminates (requires Lamination Module) And UV Film Options. |
Encoding Security Options: |
Magnetic Stripe Encoding: HiCo And LoCo Encoder ISO 7811. Smart Card Encoding: Contact Chip, MIFARE®, DESFire® And IClass®. Others Available. |
Printer Interfaces: |
USB (Ver2.0) Full-Speed (12Mbps) And Hi-Speed (480Mbps) 10BASE-T/100BASE-TXEthernet, Both Included As Standard. |
Dimensions: |
343mm Width X 320mm Height X 330mm Length (13.5” Width X 12.6” Height X 13” Length). |
Print Speed: |
YMCK With Transfer To Card: 100 Cards Per Hour Single-sided. |

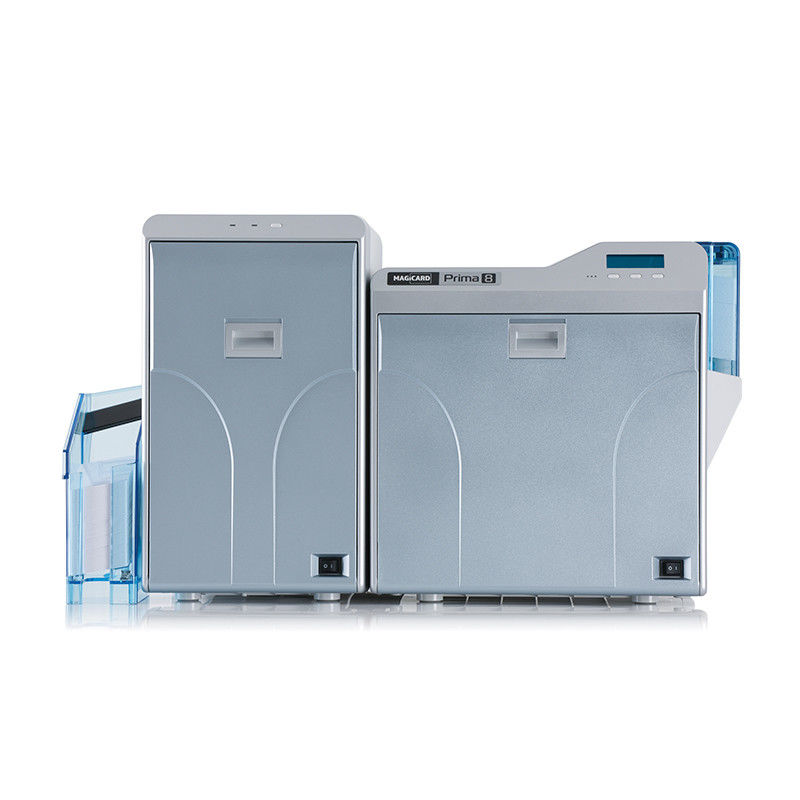

Prima 8 Secure ID Card Printer 300 DPI Reverse Transfer Printing Technology
|
Brand Model:
|
MAGICARD Prima 8
|
|
Dimensions and Weight:
|
343mm wide x 320mm high x 330mm long, 15.5kg
|
|
Printing Mode:
|
300 DPI thermal transfer printing technology (600 DPI optional)
|
|
Printing Speed:
|
YMCK single-sided transfer: 100 cards/hour
|
|
Card Box Capacity:
|
Input hopper: 100 cards; Output hopper: 100 cards
|
|
Card Security:
|
UV printing and holographic laser anti-counterfeiting overlay (requires overlay module)
Magnetic Stripe Card Encoding: HiCo / LoCo encoder compliant with ISO 7811 standard
Smart Card Encoding: Contact chips, contactless chips such as MIFARE®, DESFire®, and iClass®
|
|
Print Head:
|
Replaceable individual unit
|
|
Card Types:
|
CR80 PVC, ABS, PET, PVH white cards, magnetic stripe cards, and chip cards
|
|
Card Thickness:
|
0.25mm - 1.0mm
|
|
Communication Interfaces:
|
Standard high-speed USB (12Mbps) and high-speed 10BASE-T/100BASE-TX Ethernet
|
|
Operating Environment:
|
Temperature: 15°C- 30°C; Humidity: 35% - 70%
|
|
Drivers:
|
Windows 2000 Professional (SP4), XP (SP2, SP3), Vista (SP1), Windows Server 2003 R2 SP2, Server 2008, 2012, Windows 7, Windows 8, 10 (32/64-bit)
|
|
Laminating Film:
|
Film; 0.5 mil and 1.0 mil thickness; transparent and holographic laser anti-counterfeiting options available
|
|
Compatible Ribbons:
|
YMCK ribbon and transfer film set. 1000 cards
YMCK ribbon. 1000 cards
YMCKK ribbon. 750 cards
YMCK-UV ribbon. 750 cards
YMCK-PO ribbon. 750 cards
|
Color Sublimation
Process: In color sublimation, solid dye is turned into gas without passing through a liquid state. The gas then penetrates the substrate and solidifies, creating vibrant, full-color prints.
Applications: Commonly used for producing high-quality images on materials like PVC, particularly in ID cards and badges.
Monochrome Thermal Transfer
Process: This method involves using a thermal print head to apply a single color (usually black) onto the substrate. A ribbon coated with a color layer is heated, transferring the color to the card.
Applications: Ideal for printing text, barcodes, and simple logos, often used in ID cards where color graphics are not needed.
